Tower Construction

This is one of many towers we have installed over the years, a 160 foot Magnum brand tower for an AM station. We completed all phases of the construction except the brush clearing. The ground work was a little tricky because the holes kept filling up with water. Once the concrete was cured, the tower went together well. The hard part was laying 120 radials of  #10 copper wire about 8 inches underground and going out 160 feet. We did this with a tractor equipped with a wire plow but we came to a stop many times to chop out large and very tough roots.

Click on pictures for larger image.

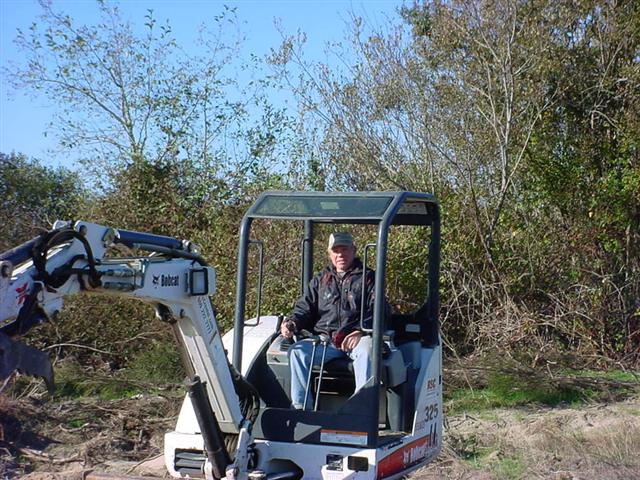

Digging the holes
Holes kept filling with water

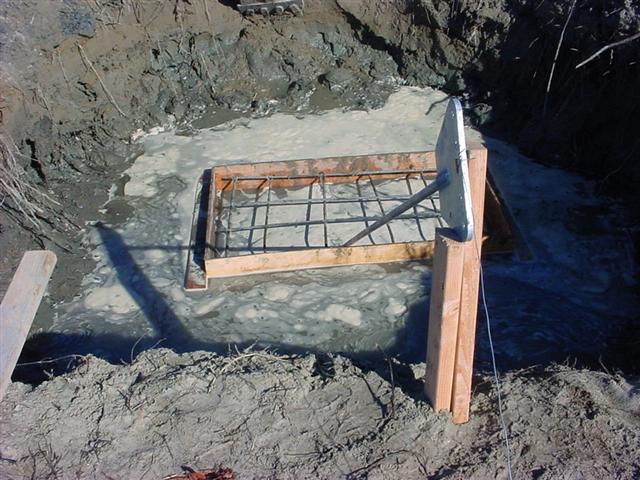

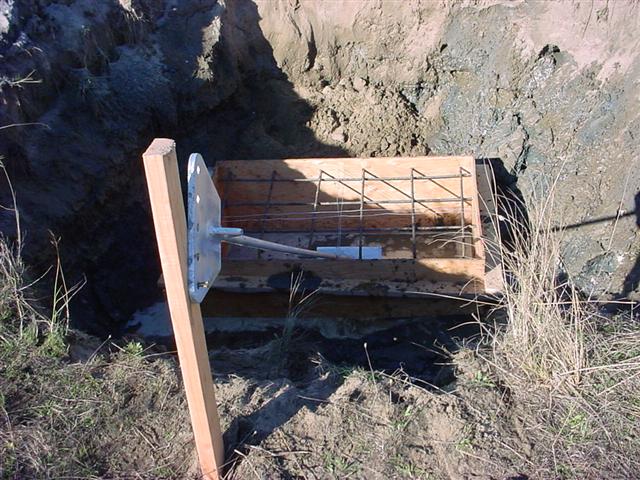

Forms and rebar to engineered specs and inspected as per permit requirement

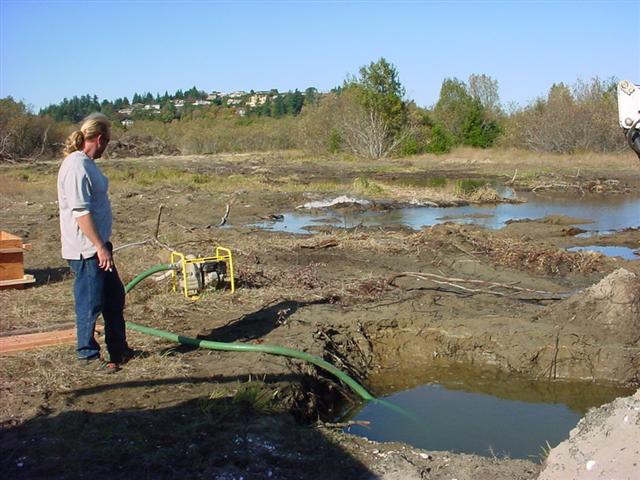

More water to be pumped out

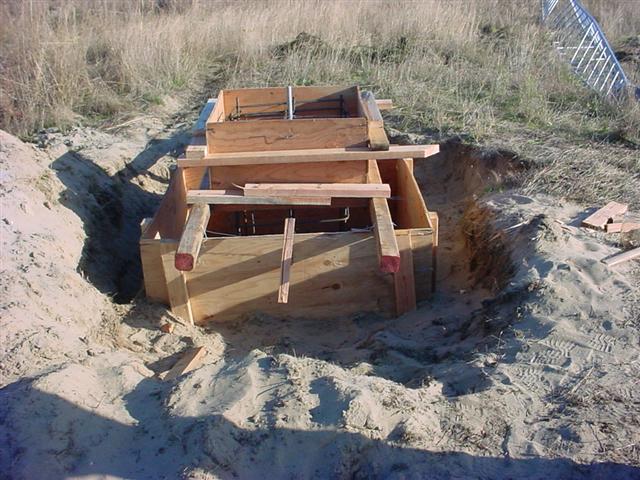

Tower base was on higher ground so no problems with water

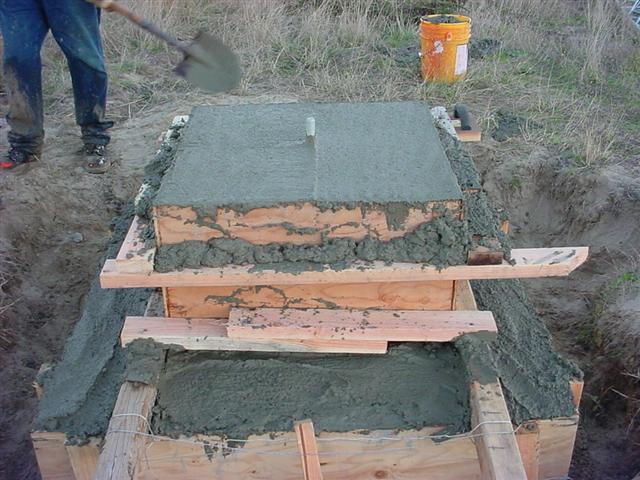

Tower base concrete before finishing



Next tower section coming up

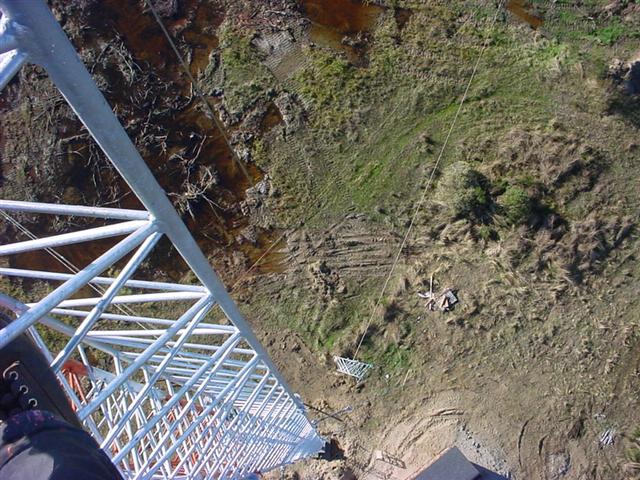

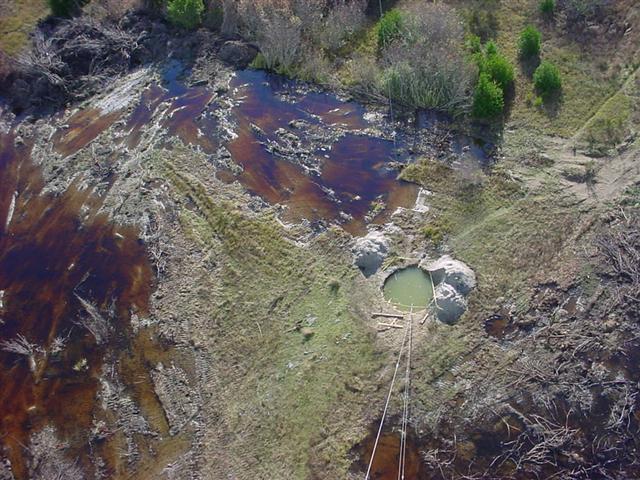

Holes filled again during tower erection
